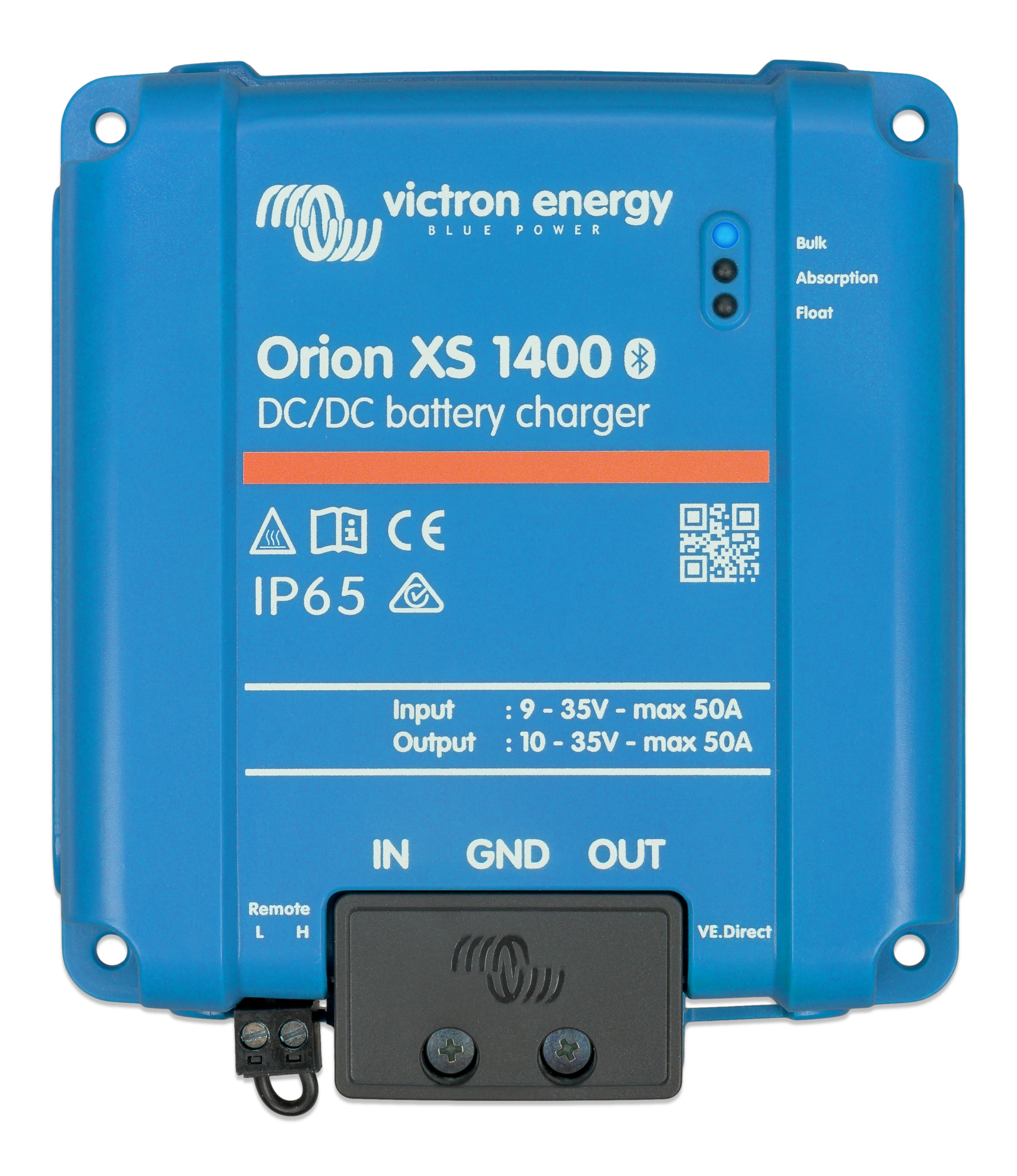

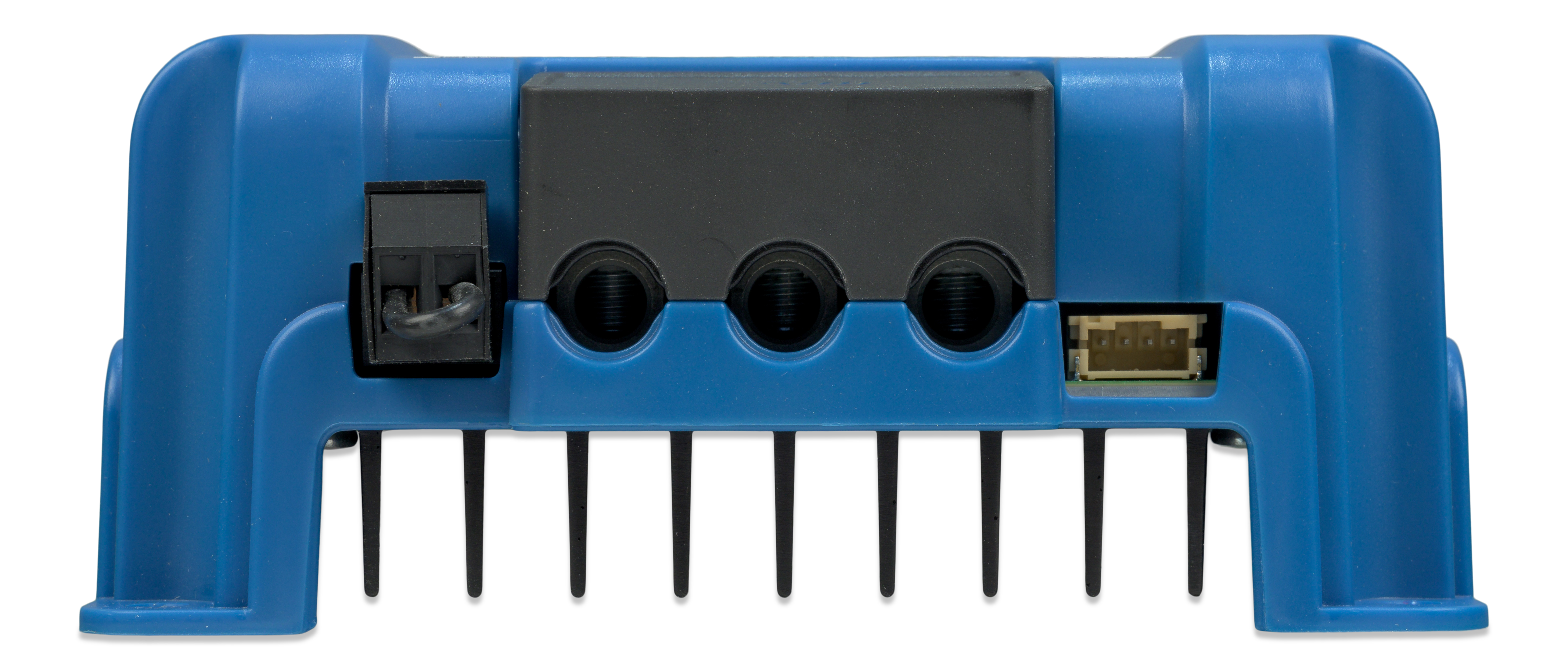

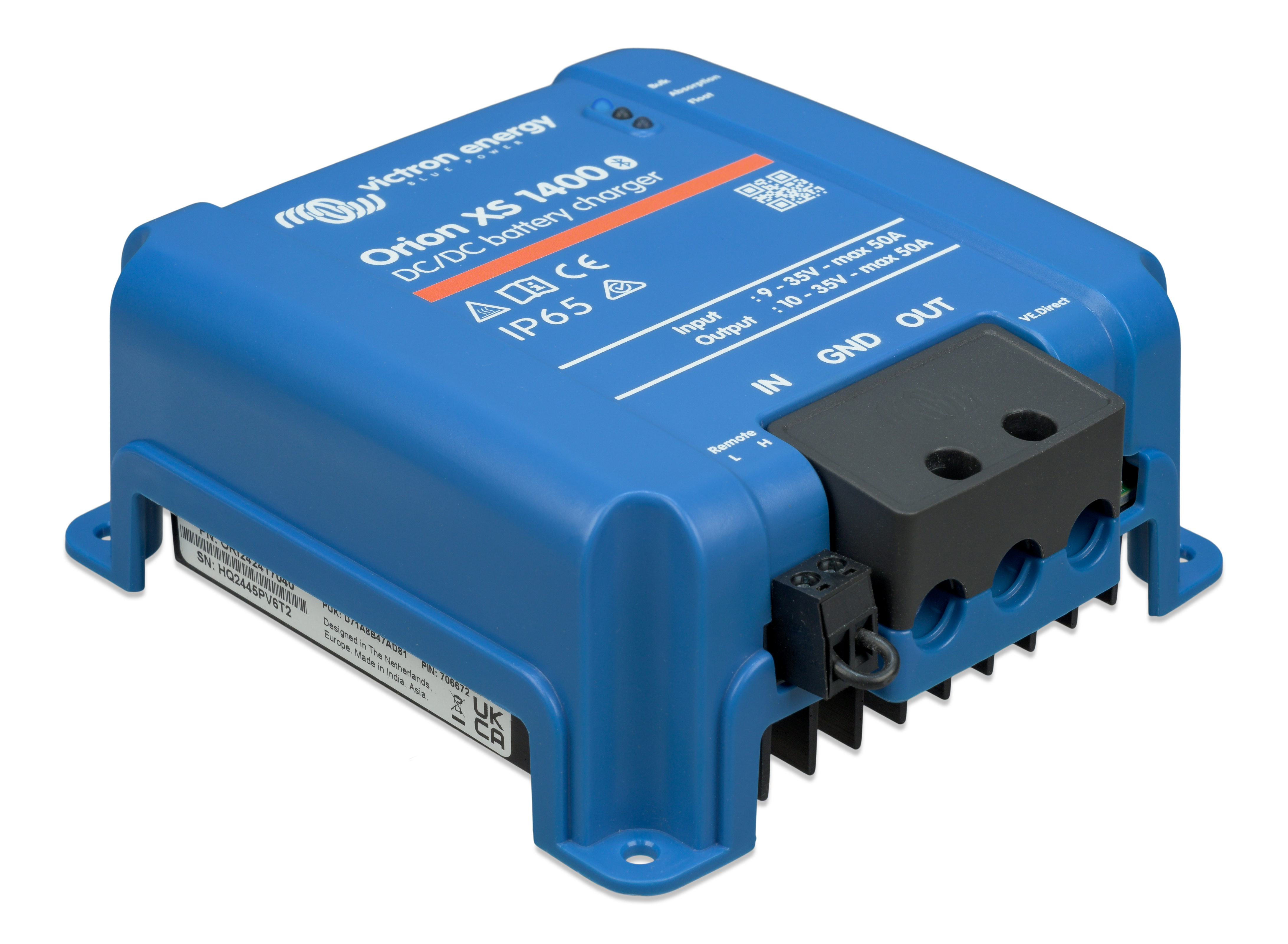

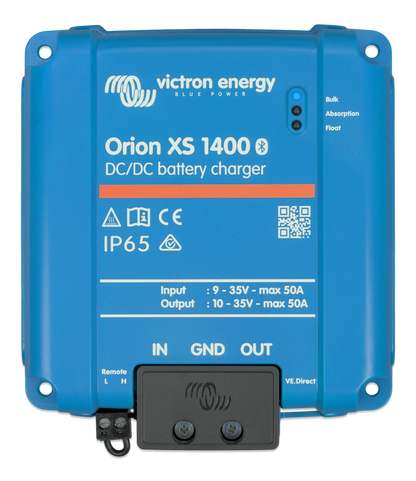

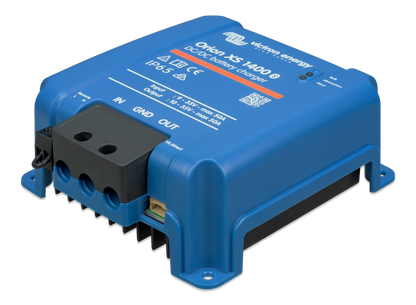

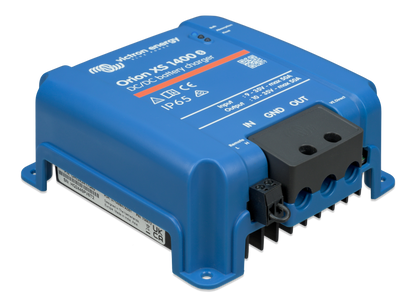

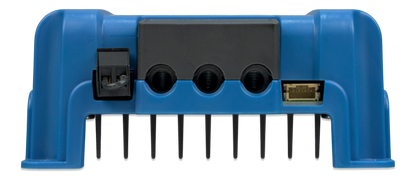

Victron Energy Orion XS 1400 DC-DC Battery Charger
The All New Orion XS 1400 DC-DC Battery Charger
For mixed voltage battery charging
Input Voltage Range: 9-35V
Output Voltage Range: 10-35V
Max Charge Current: 50A
Engineered from the ground up, the Orion XS redefines adaptive DC-DC battery charging. For use in dual battery
systems charged with an (intelligent) alternator. This device not only ensures top-tier performance but also
guarantees the safety of your system.
The Orion XS serves as a DC-DC battery charger or as a power supply, offering a wide input and output voltage
range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often
supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often
the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to
fully charge the service battery while protecting the starter/input battery from discharge.
Adjustable charging current
The charge current is adjustable with a minimum step size of 0.1 A. via VictronConnect.
Smart alternator compatibility
An integrated mechanism detects whether the engine is running (engine shutdown detection), which only
activates the charger when the alternator supplies power. This ensures that the charger only draws power when
the alternator is supplying power, i.e. when the engine is running.
Adaptive 4-stage charge algorithm
For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to
prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make
sure that the battery is completely recharged.
The Orion XS includes fully programmable charging algorithms and eight pre-programmed battery settings.
Low temperature shutdown and input undervoltage protection
To prevent damage of lithium batteries the charger will turn off automatically at low temperatures. It will also shut
down when the input voltage drops below a configurable lockout value and restart when the input voltage rises
above the restart value, this to protect the input source ie. starter battery from deep discharge.
Remote on/off
The Orion XS can be switched on and off remotely via the remote on/off connector or the VictronConnect App.
Typical applications include wiring a switch or Battery Management System (BMS).
Comprehensive electronic protection
The protections includes overload, short circuit and excessive temperatures. The charger is protected against overtemperature by reducing the output power when the maximum product temperature is reached.
Can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
Bluetooth Smart enabled
-
Built-in Bluetooth Smart: The wireless solution to change settings, monitor activities and update the Orion XS
software using Apple and Android smartphones, tablets or other devices. Various parameters can be adjusted with
the VictronConnect App. -
Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list
page without the need to connect to the product. -
VE.Smart Networking: Use VE.Smart Networking to receive Vsense, Tsense and Isense data over the wireless
network for your Orion XS DC-DC battery charger, for example, from a BMV, a SmartShunt, or a Smart Battery
Sense. The charger uses the available information from the battery to optimize the charging parameters. This
improves charging efficiency and extends battery life.
VE.Direct port and DVCC
For a wired connection to a GX device such as the Cerbo GX or Ekrano GX, PC or other devices. Enables advanced
monitoring, control and diagnostics from anywhere (requires a GX device connected to the internet and VRM
Portal) or locally via the Remote Console, as well as DVCC (Vsense, Tsense, Isense), System wide charge current limit
and BMS control.
IP65 protection
The Orion XS complies with ingress protection rating IP65. This means the product is dust-tight and protected
against heavy rain.
Couldn't load pickup availability
Pickup available at Bend Battery Brick and Mortar
Usually ready in 2 hoursPairs well with
Victron Energy Orion XS 1400 DC-DC Battery Charger
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FAQs
What do I do with my Lithium batteries when the weather is cold?
Cold Weather Maintenance
- You can discharge (take energy out) of the batteries down to a battery core temperature of -4 degrees F.
- You can recharge lithium batteries when the core temp of the battery is 32 degrees F or warmer (41 degrees or warmer for Victron batteries. Victron is listed in C, this is 5 Degrees C)
- If your batteries have heaters, do not leave the heaters on all night unless you are plugged into shore power, as you will use unneeded energy.
- If your batteries have heaters, but there is no way to charge (not plugged into shore power, no generator available, solar panels are covered in snow), turn your heaters off.
- If you do not have heaters, your batteries MUST be warmer then 32 degrees F to charge (41 degrees for Victron).
- Some battery heater installations do not feature a switch for remote operation. If that is the case, your heaters will turn on and off automatically as temperatures demand. Please keep an eye on your battery state of charge.
- If you are not using your trailer / RV etc. for the winter, ensure your batteries are above 80% state of charge, and disconnect the master Negative cable from the batteries. If you have Battle Born heated batteries (BB12100H) disconnect the “heat enabled” wire from the small red button terminal located right beside the positive terminal.
- Many customers have main disconnect switches that will cut the power to the batteries, but you should take extra care that they are TRULY disconnected. Often RVs will still have a C02 sensor, backlit stereo, or some other emergency sensor that is bypassing this switch. If you are in doubt, simply disconnect the main positive and negative wires that supply your batteries. After the winter storage time, you should have plenty of charge in the batteries.
- With LiFePO4 batteries, we recommend disconnecting all potential power draws from the battery and letting them sit with a full charge, or at least a 50% charge minimum. On a full charge, LiFePO4 batteries have been proven to last at least a year in proper storage conditions with a 2–3% depletion each month. If left at a half charge, the batteries have the potential to not last as long in storage.
- Tests indicate that at 0 degrees Fahrenheit, with no insulation, the Battle Born internal heater is on about 30% of the time. With no external charging or loads, it gives approximately 185 hours (7 days) of heat capability before the battery goes into a low voltage disconnect.
- If the batteries are stored without a charge, their levels could dip below what the internal Battery Management System, or BMS, can protect over the winter season. If possible, we recommend storing them fully charged in an environment above freezing. Our team recommends not leaving a completely drained battery in that state for an extended amount of time, as it can damage the cells inside. Doing so will void the warranty!
- If you do find yourself with batteries that are too cold to charge, you have a couple of options:
- Bring the batteries into a warm space or park your vehicle indoors
- Run a space heater (use caution) inside your vehicle to warm the batteries up. DO NOT use power from the batteries ie. Your inverter, to power the heater. Run an extension cord from your house to the vehicle and plug the heater into your home.
- If your batteries are above 60% state of charge, and you can confirm there is no load on the batteries (verify though your shunted meter, you should see 0.0A / 0W load), you can safely leave your batteries for 90 days without worry.
- LEAVING A LITHIUM BATTERY IN A FULLY DISCHARGED STATE WILL VOID YOUR WARRANTY!!!!
- When in doubt, remove your batteries and bring them into us to be fully charged and ready for storage. This will take 24-48 hours. TAKE PICTURES OF YOUR SYSTEM BEFORE DISCONNECTING ANY WIRING. We are not liable, nor can we assist with “I forgot where this wire goes”. That is your responsibility.
